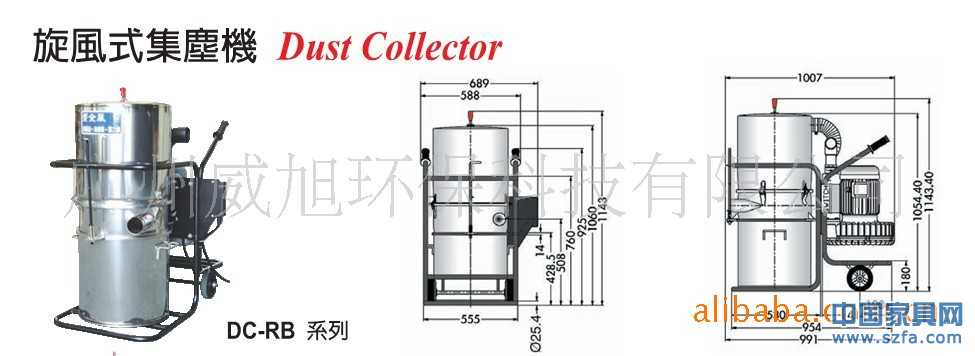

旋風式集塵機Dust Collector
特性：本集塵機為本公司最新制造，采用旋風收塵極喻袋式吸塵機之特長，吸力特強。、
用途：可靠近粉塵場所收塵，不需配管，節省經費，大幅提高方便與機動性。
適用于噴砂、砂輪、木工、研磨、切削等，吸塵粉，棉屑，木削之用。

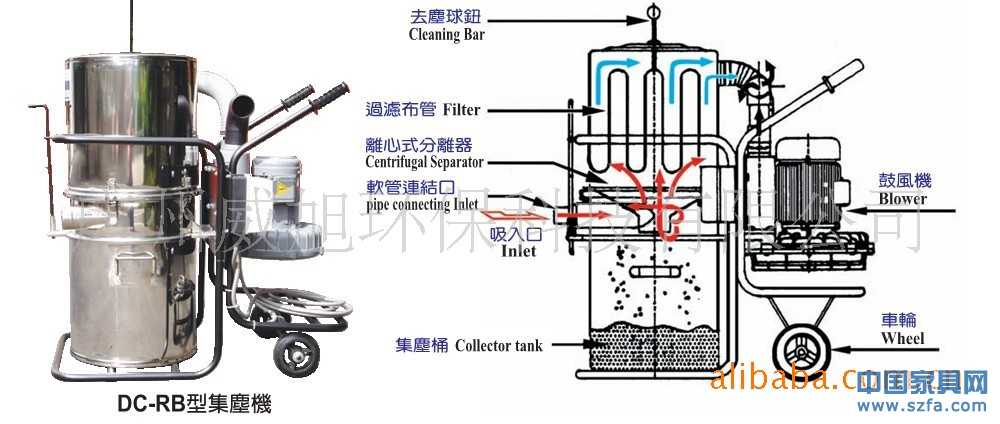

Functions: DC series a new design high efficiency dust collector, both cyclone & suction design were adopted.
Applications: High efficiency, movable & convenient unit, could be applied nearby dust creators, non pipe-construction required. Economically, Mobility, and Conveniently.
It’s suit to be applied on sand-spray processing, grind processing, wood-working, sawing etc. For dust, smog collecting.
|
型式 Type |
功率 KW/HP |
最大靜壓 kpa |
最大風量 m3/min |
吸入口徑 Inlet |
重量 Weight |
補集效率 99%以上 |
|
DC-RB-750 |
0.75/1 |
13/16 |
2/2.4 |
3” |
80kg |
可處粒徑0.05μm (特殊濾袋)可至0.01μm |
|
DC-RB-022 |
1.5/2 |
19/23 |
3.4/4.2 |
3” |
90 kg |
|
|
DC-RB-033 |
2.2/3 |
21/26 |
4.8/6 |
3” |
95 kg |
|
|
DC-RB-055 |
3.7/5 |
27/33 |
6.5/8 |
3” |
125 kg |
|
|
DC-RB-077 |
5.5/7 |
27/32 |
10/12 |
3” |
145 kg |
|
|
DCS-RB-750 |
0.75/1 |
13/16 |
2/2.4 |
1 1/2” |
40 kg |
|
|
DCS-RB-022 |
1.5/2 |
19/23 |
3.4/4.2 |
1 1/2” |
50 kg |
|
|

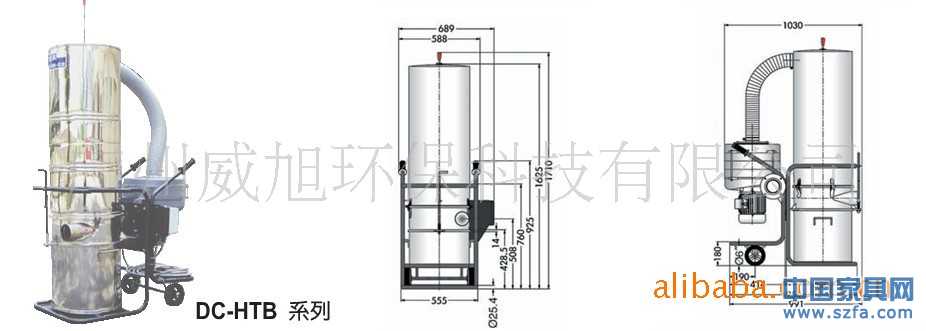

DC-HTB100-102 |
0.75/1 |
3.2/4 |
10/12 |
4” |
100 kg |
|
|
DC-HTB100-203 |
1.5/2 |
4.6/6.5 |
11/13 |
4” |
106 kg |
|
|
DC-HTB100-304 |
2.2/3 |
6.1/8.5 |
12/14 |
4” |
115 kg |
|
|
DC-HTB100-505 |
3.7/5 |
7.4/10.5 |
13/15 |
4” |
125 kg |
|
|
DC-TB100-1 |
0.75/1 |
1.3/1.8 |
13/15 |
4” |
95 kg |
可處粒徑0.1μm |
|
DC-TB100-2 |
1.5/2 |
2.1/2.5 |
20/23 |
4” |
100 kg |
|
|
DC-TB125-3 |
2.2/3 |
2.5/3.2 |
25/32 |
6” |
110 kg |
|
|
DC-TB150-5 |
3.7/5 |
3.6/4.5 |
35/45 |
6” |
127 kg |

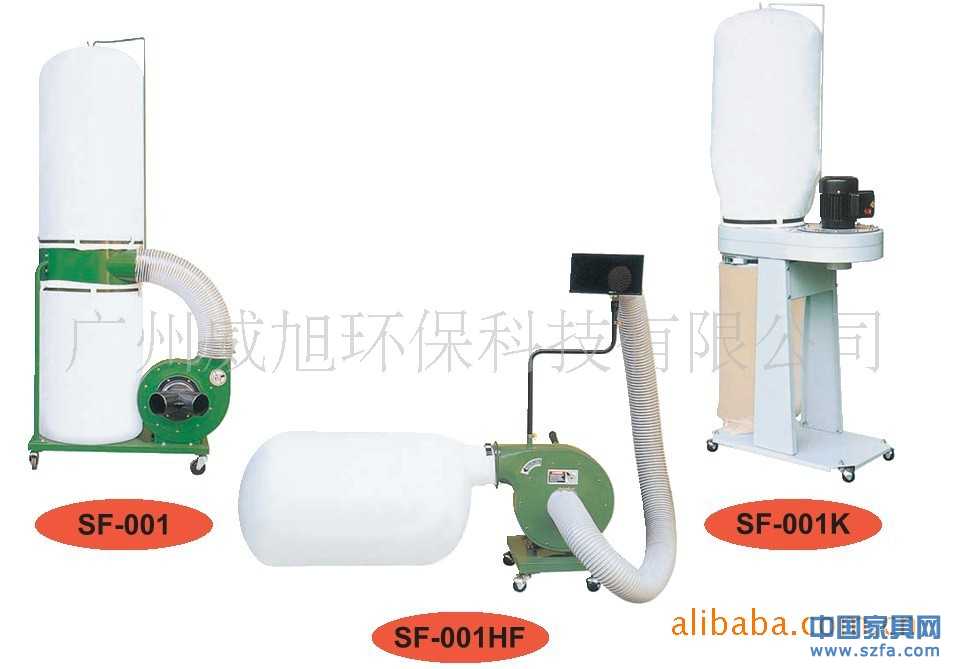

活動式（袋式）集塵機Portable Dusr Collector
用途：可靠近粉塵場所收塵，不需配管，節省經費，大幅提高方便與機動性。
適用于噴砂，砂輪，木工，研磨，切削等，吸塵粉，棉屑，木削之用。
規格specifications
|
型號 Model |
功率 (hp) |
風速 Air speed (m/sec) |
風量 Air flow (m3/min) |
吸風口徑 inlet |
集塵袋 Collector Bag(cm) |
組合尺寸 Space occupied(cm) |
包裝尺寸 Packing Size（cm） |
凈重 N.W. (kg) |
毛重 G.W. (kg) |
|
SF-001HF |
3/4 |
40 |
19.5 |
4*1 |
Ф35 |
50*100*50 |
47*40*55 |
20 |
22 |
|
SF-001K |
1 |
42 |
20 |
4*1 |
Ф35 |
75*38*185 |
79*43*39 |
36 |
38 |
|
SF-001 |
1.5 |
38 |
37 |
4*2 |
Ф51 |
90*50*200 |
87*61*58 |
51 |
53 |
|
SF-209BH |
2 |
40 |
59 |
4*3 |
Ф61 |
97*60*280 |
96*74*59 112*62*8 |
80 |
87 |
|
SF-003F |
3 |
45 |
88 |
4*4 |
Ф51 |
144*57*220 |
113*80*58 146*60*8 |
100 |
105 |
|
SF-003 |
5 |
45 |
92 |
4*4 |
Ф61 |
168*62*280 |
116*70*68 167*64*5 |
120 |
135 |
|
SF-004 |
7 1/2 |
48 |
141 |
4*6 |
Ф61 |
155*130*280 |
162*85*78 |
200 |
250 |
活動式（袋式）集塵機Portable Dusr Collector
Designed especially for small working environment suitable for coarse dust or chips.
Powerfui motor features a cast iron blower blower house with steel impeller, sealed long lasting operation.
Offer you large collecting capacity.
Sturdy steel base with four wheel for moving machine to machine, or for storing out of the way.
工業用（干/濕兩用）集塵機Industrial wet/dry vacuum cleaner
The fully new-designed separated cooling system of the best efficiency, guarantee of long-term running use.
Low-noised, sturdy and closely woven filter bag preventing from dust leakage as pollution to the environment, the surface of filter bag is special treated for dust resistance, easy to be cleaned up.
Special water-proof equipment ensures safe motor operation, anti-rust, moisture-proof and hight-weight stainless steel tank free of knock, for dry and wet use.
規格specifications
|
型號 Model |
功率 power (W)j |
電壓 Voltage (V) |
真空壓 Vacuum (mmAq) |
風量 Air flow (m3/min) |
容量 Tank size (liter) |
材質 material |
材積 Packing size L*W*H(mm) |
重量 Weight (kg) |
|
|
1100 |
110,220 |
2300 |
2.6 |
40 |
Stainless |
560*500*730 |
19 |
|
|
1100 |
110,220 |
2400 |
2.8 |
47 |
Stainless |
610*510*890 |
29 |
|
|
2700 |
110,220 |
2700 |
5.6 |
56 |
Stainless |
610*510*990 |
32 |
